Workflows

LiDAR Workflows

Setup

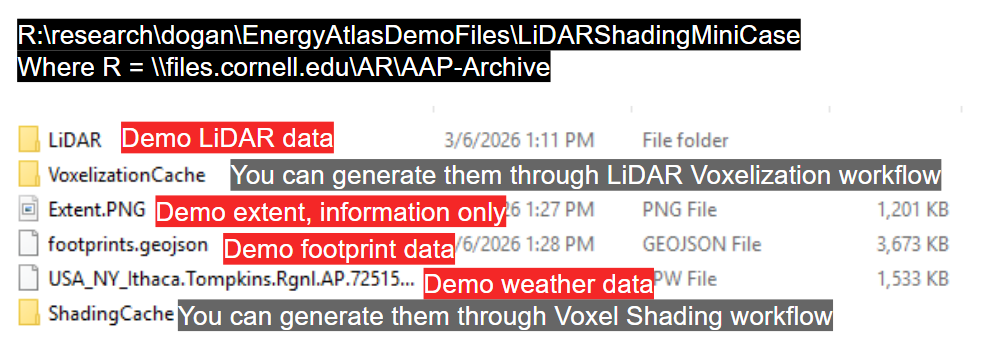

Fetch the demo files

alt text

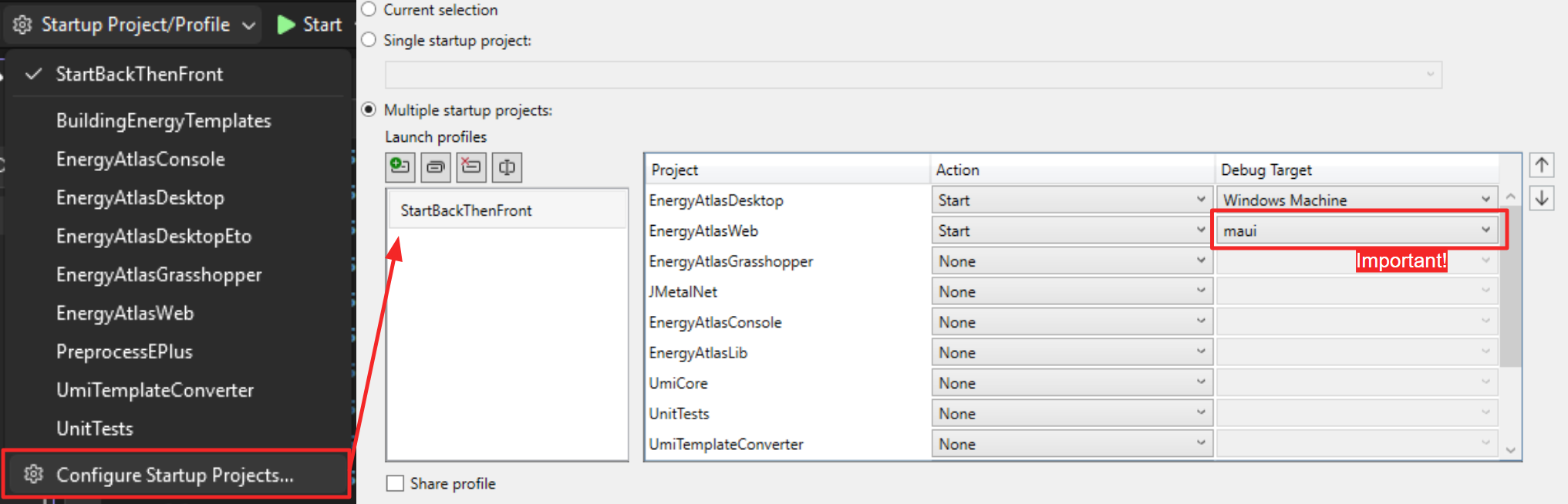

Set up the startup project in Visual Studio (these settings are not git controlled, so we have to configure manually for each machine)

Maui

alt text

Make sure the Debug Target is maui for the EnergyAtlasWeb project. This determines the ExecutionMode of the application and whether it will have access to the local file system or remain as a typical browser web app.

Eto

Code changes not yet committed; not supported for the moment, apoligies.

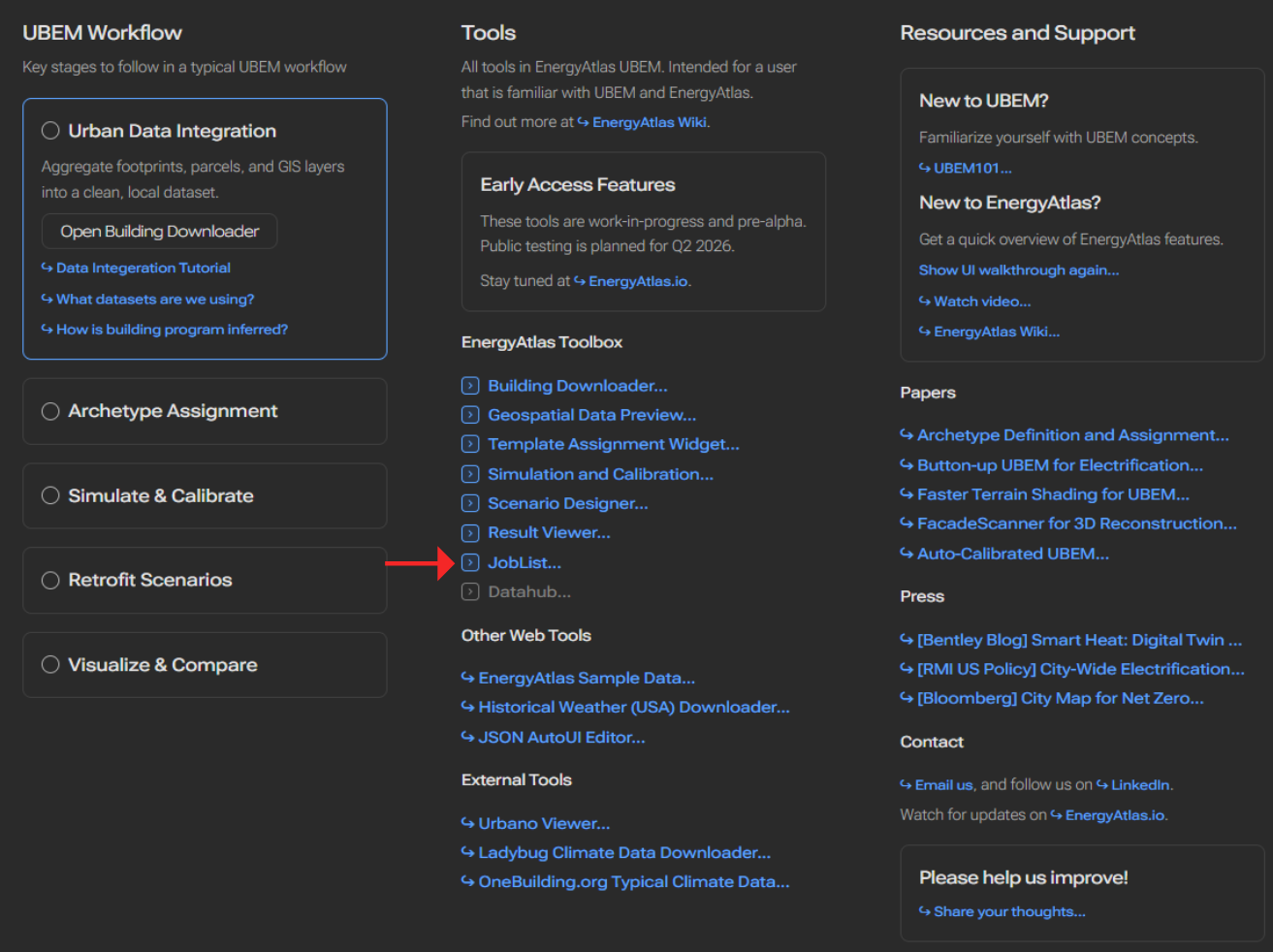

Navigation to the Job List page to find the list of jobs available.

alt text

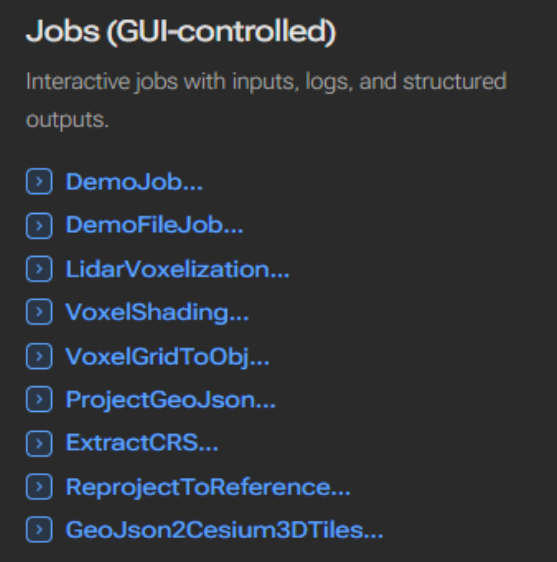

Focus on the middle column with GUIJobs

alt text

LiDAR Voxelization Workflow

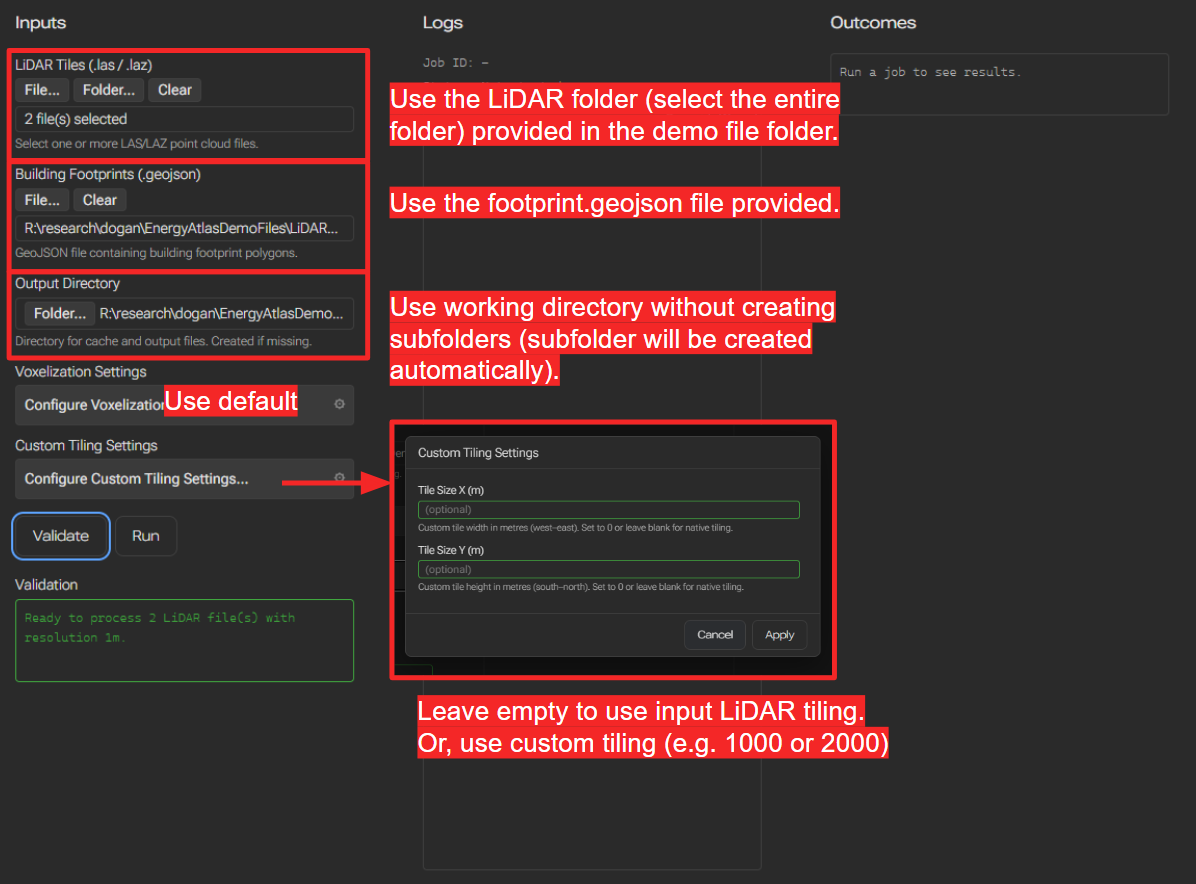

The LidarVoxelization job will voxelize classified LiDAR inputs and drape footprint geometries on the LiDAR tiles to produce the voxelization cache for shading calculation.

alt text

Successfully running this workflow will result in a folder within the working directory called VoxelizationCache, inside which 2 set of files are created: - A _LiDARVoxelization_metadata.json which records inputs and most importantly, projection information as WKT. They are necessary for the shading workflow to produce the geojson with correct geospatial coordinates. - As many tile_c{TileXCoord}_r{TileYCoord}_voxelgrid.msgpack files as the number of tiles (including empty tiles). They contain both voxelgrid and draped meshes for each tile.

Voxel Shading Workflow

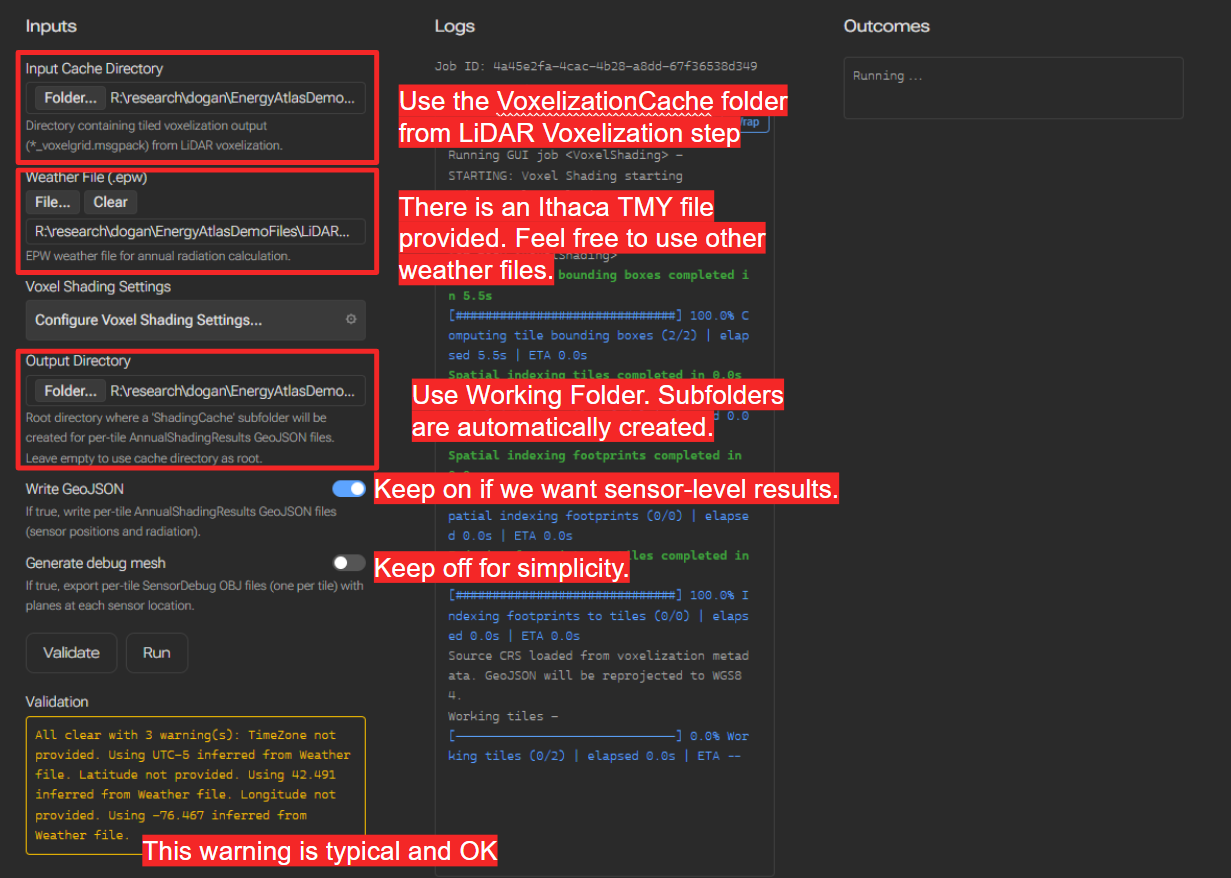

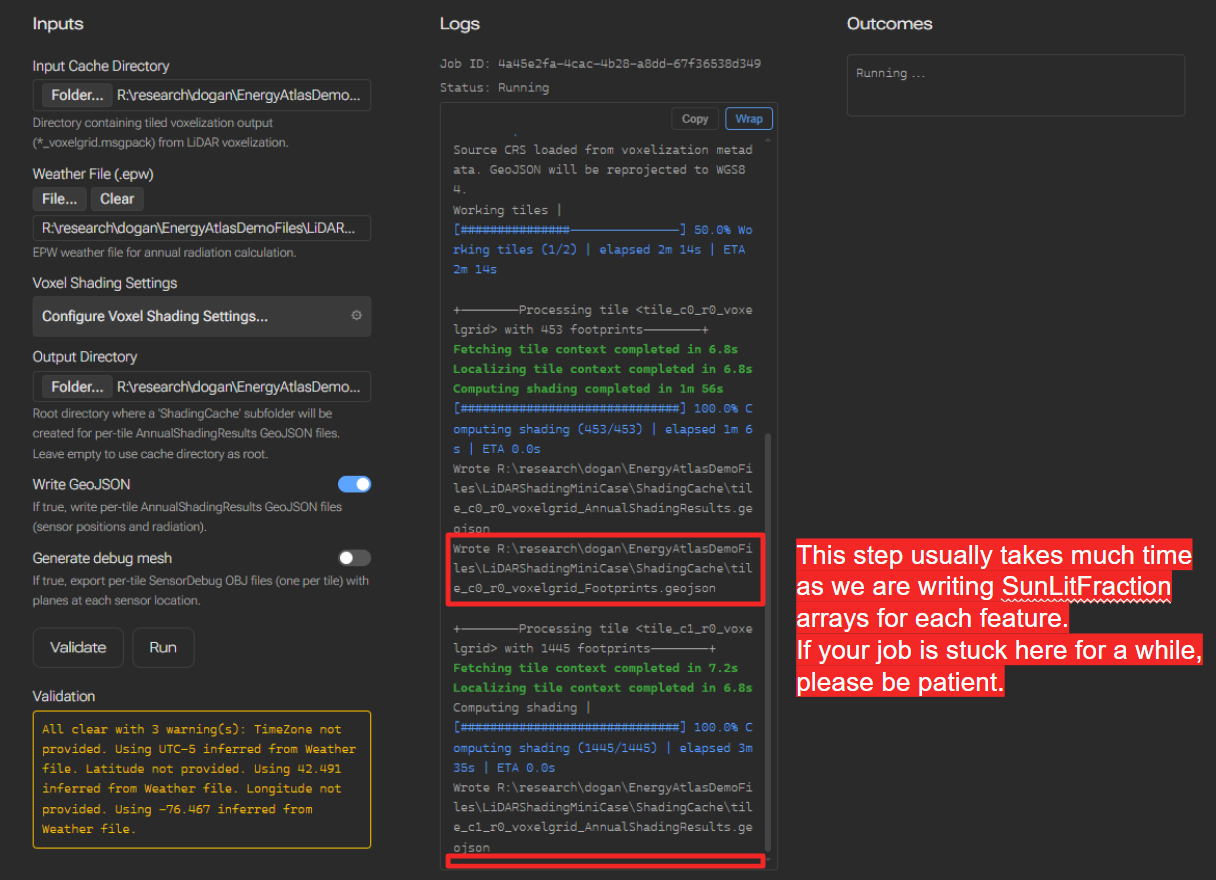

The VoxelShading job will compute shading using the voxel ray-marching approach. Detailed steps and inputs:

Note: in the latest version, a new toggle is added to allow the user to export full SunLitFraction arrays in sensor-level outputs.

alt text alt text

Successfully running this workflow will result in a folder within the working directory called ShadingCache, with files:

  • As many tile_c{TileXCoord}_r{TileYCoord}_voxelgrid_Footprints.geojson files as the number of tiles (including empty tiles). They include building footprint level results (aggregated) with full SunLitFraction arrays.
  • (If you opted in for Write GeoJSON in the input) As many tile_c{TileXCoord}_r{TileYCoord}_voxelgrid_AnnualShadingResults.geojson files as the number of tiles (including empty tiles). They include sensor-level results with 3d coordinates.
  • (If you opted in for Generate debug mesh in the input) Tile-level sensor debug meshes as obj files. For each sensor, a debug square mesh (quad) will be generated, with the correct area of that sensor, normal direction of that sensor, and a color scheme that matches the shading results (for qualitative inspections only, no legend provided).

(Optional) Voxel Grid MessagePack to OBJ Files

The job VoxelGridToObj allows you to convert 1 or many .msgpack voxel grid cache to obj files. The output obj files will contain both voxelized LiDAR and draped footprint base, facade, and roof meshes.

(Optional) Shading Result to Cesium 3D Tiles (.GLB) Workflow

The job GeoJson2Cesium3DTiles allows you to convert shading cache sensor-level result .geojson files (tiled) to a Cesium ion 3d tiles format (.glb 3d geometry file and a tileset.json tileset spec file).
